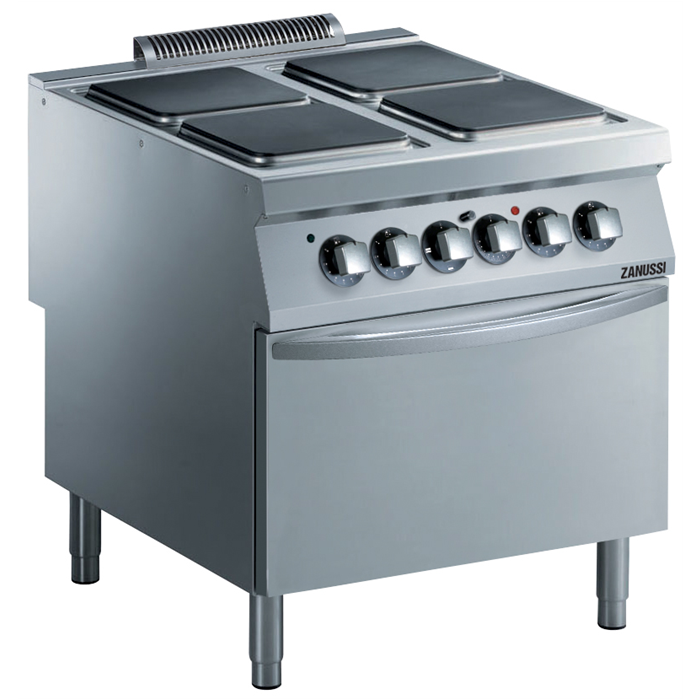

ZANUSSI EVO900 4-Electric Hot Plate Range 392041

MODEL
392041

Login to view price

Additional Information
More Information
Model392041
BrandZanussi
Energy TypeElectric
Size (LxWxH) mm800 x 900 x 850
Weight (KG)120
Voltage380-400 V/3N ph/50/60 Hz
Warranty One Year Manufacturing Defect
OriginItaly
Model 392041
Voltage 380-400 V/3N ph/50/60 Hz
Total watts 22 kW
Power per plate 4 kW
Oven heat input 6 kW
Plate dimension (L x W) 300 x 300mm
Oven temperature 230°F(110°C) to 545°F(285°C)
Oven dimension (L x W x H) 575 x 700 x 300mm
External dimension (L x W x H) 800 x 900 x 850mm
Net weight 120kg
Shipping dimension (L x W x H) 1020 x 880 x 1080mm
Shipping weight 139kg
Spec Sheet (240.34 kB)

Features

  • Unit to be mounted on stainless steel feet with height adjustment up to 500mm
  • Unit can be easily mounted on cantilever systems
  • The four 4kW electric cast-iron hot plates are hermetically sealed to the one piece top and are featured with safety thermostat
  • Base compartment consists of an electric standard oven with 40mm thick oven door for heat insulation, positioned beneath the base plate
  • Oven chamber with 3 levels of runners to accomodate 2/1 GN shelves (2 steam pans)
  • Ribbed cast iron oven base plate
  • Oven to feature separate thermostats for top and bottom elements
  • Thermostat temperature adjustable from 230ºF(110ºC) to 545ºF(285ºC)
  • The special design of the control knob system guarantees against water infiltration
  • IPX5 water protection
  • Top configuration allows installation on ambient base only (not possible to install on refrigerated nor freezer base)
  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps
