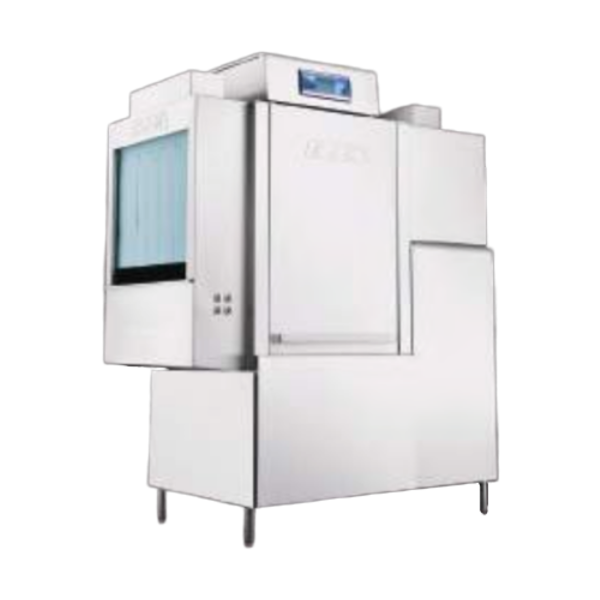

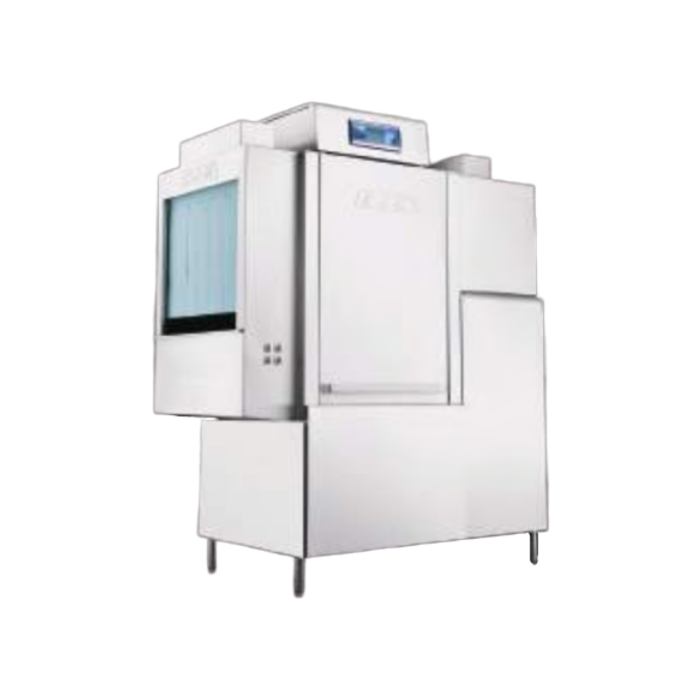

SJM Conveyor dishwasher R1G / R1E

MODEL
R1G R1E
Additional Information
More Information
ModelR1G R1E
BrandSJM
Size (LxWxH) mm1250 x 665 x 1400
Warranty One Year Manufacturing Defect
OriginSouth Korea
Model R1G (Gas Booster)
R1E
Product dimension (L x W x H) 1250 x 655 x 1400mm
Operating capacity 164 racks/hr ; 4100 dishes/hr
Wash pump motor 1.5 kW
Conveyor motor 0.2 kW
Conveyor speed 1.0m/min
Wash tank capacity 45 litre
Water consumption 8 litre/min
Waterline size 20mm
Drainline size 40mm
Gas type
Wash tank heater 5kW
Rinse pump motor 0.35kW
Gas booster 36,000 kcal/hr
Electric type
Wash tank heater 15kW
Rinse tank heater 36kW
Rinse pump motor 0.35kW

Features

  • The embedded LCD that carries a self-diagnosis, not only indicates a washing mode and operation status but also results in less labor cost and user convenience by realizing high-efficiency and low-cost.
  • With a double performing capacity of a rinsing motor compared to that of competitors' pump, it can control an appropriate pressure for an optimal rinsing ability.
  • Attached on a conveyer motor, a safety switch for proximity protects the motor from the motor load of conveyers due to a rack clogging when ejected.
  • The PCB, an originally-developed program by SJM, is a superb medium that connects a cutting-edge technology and users.
  • The rinsing economizer prevents a useless consumption of detergent and rinsing water by detecting a moment to inject rinsing water.
