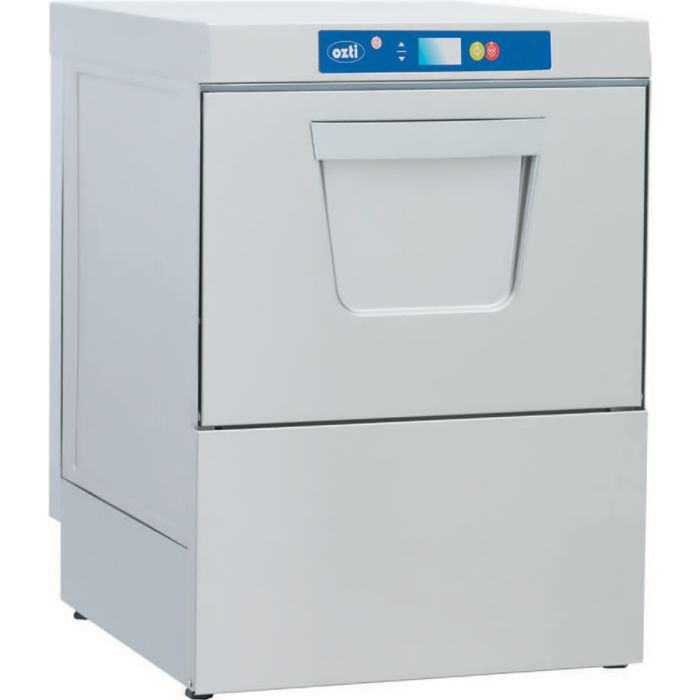

OZTI Undercounter Dishwasher OBY-500D
Model |
OBY-500D |
Electric connection |
230V-NPE / 50Hz |
Total rating |
5.5 kW |
Washing program number |
5 |
Program times (seconds) |
102/132/152/172/192 |
Washing capacity |
Plate/hr: 560 plates/assiette (maximum) |
Basket/hr: 35/27/23/20/18 |
Tank capacity |
Washing: 27 litre |
Boiler: 6 litre |
Temperature |
Washing water: 55-60°C |
Rinsing water: 80-85°C (maximum) |
Water inlet: 50°C |
Water inlet connection |
3/4" |
Pump power |
Washing: 0.66 kW |
Rinsing: 0.37 kW |
Water inlet pressure |
2-4 bar |
Heat power |
Washing: 2 kW |
Rinsing: 5 kW |
Dirty water discharge connection |
11/4" (Ø 42mm) |
Maximum noise |
75 dBA |
Protection class |
IPX5 |
Inclination |
6° |
Rack dimension |
500 x 500 mm |
Useful loading height |
335 mm |
Product dimension (L x W x H) |
595 x 650 x 830 mm |
Net weight |
65 (±5) kg |
Gross weight |
70 (±5) kg |
Features
- Stainless steel pressed body and inclined washing tank
- Drawn tank base housing filter (Hygenic)
- 35 racks per hour (rack dimension 500 x 500mm)
- 2.8 litres water consumption per cycle
- Automatic, user friendly control panel
- Temperature indication on front panel
- 5 selectable washing programmes
- Saves energy, detergent and water
- Washing arms both available in stainless steel and reinforced polypropylene
- Adjustable feet for height optimization
- Easy start up: one button to fill in and heat water in the boiler tank
- Electrical components and cabling according to international standards and security regulations
- Completely sealed body to guarantee IPX5 water protection
- Thermostat - Controlled rinse and washing temperature for efficient washing
- Non-return - Check valve system
- Washing temperature at 55-60°C (water supply at a minimum of 2 bar and 50°C)
- Rinsing temperature at 80-85°C (water supply at a minmum of 2 bar and 50ºC)
- Rinse and wash water temperatures on the screen can be seen in the continuous mode
- On-screen easy-to-failure status monitoring
