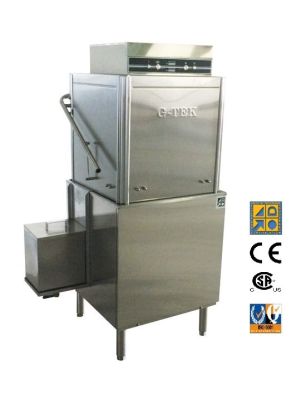

OZTI Hood Type Dishwasher OBM1080D

MODEL
OBM1080D
Now Only RM11,880.00 Regular Price RM12,420.00
Additional Information
More Information
ModelOBM1080D
BrandOzti
Size (LxWxH) mm700 x 785 x 1480
Weight (KG)115
Warranty One Year Manufacturing Defect
OriginTurkey
Model OBM1080D
Electric connection 400V 3NPE / 50Hz
Total rating 9.66 kW
Washing program number 5
Program times (seconds) 52/102/132/152/192
Washing capacity Plate/hr: 1108 plate/assiette (maximum)
Basket/hr: 69/35/27/23/18
Tank capacity Washing: 23 litre
Boiler: 7 litre
Temperature Washing water: 55-60°C
Rinsing water: 80-85°C (maximum)
Water inlet: 50°C
Water inlet connection 3/4"
Pump power Washing: 0.66 kW
Rinsing: 0.37 kW
Water inlet pressure 2-4 bar
Heat power Washing: 2 kW
Rinsing: 9 kW
Dirty water discharge connection 11/4" (Ø 42mm)
Maximum noise 75 dBA
Protection class IPX5
Inclination 6°
Rack dimension 500 x 500 mm
Useful loading height 445 mm
Product dimension (L x W x H) 700 x 785 x 1480(1960) mm
Net weight 115 (±5) kg
Gross weight 120 (±5) kg

Features

  • User friendly Digital Control Panel
  • Sainless steel body, washing and boiler tank
  • Monoblock washing tank with round corners - Hygenic
  • Maximum capacity 69 racks/hr
  • 2.8 litre water consumption per cycle
  • 5 washing programmes
  • Suitable for corner or in-line installation
  • PP polypropylene washing arms
  • Stainless steel washing arms are optional
  • Contains stainless steel tank filter
  • Adjustable feet for height optimization
  • Easy start up: single button for water filling and heating in the boiler tank
  • Electrical components and wiring according to international standards and security regulations
  • Thermostat - Controlled, washing and rinsing temperatures for efficient washing
  • Non-return - Check valve system
  • Digital screen for temperature and error displays
  • Washing temperature at 55-60°C (water supply at a minimum of 2 bar and 50°C)
  • Rinsing temperature at 80-85ºC (water supply at a minimum of 2 bar and 50ºC)
