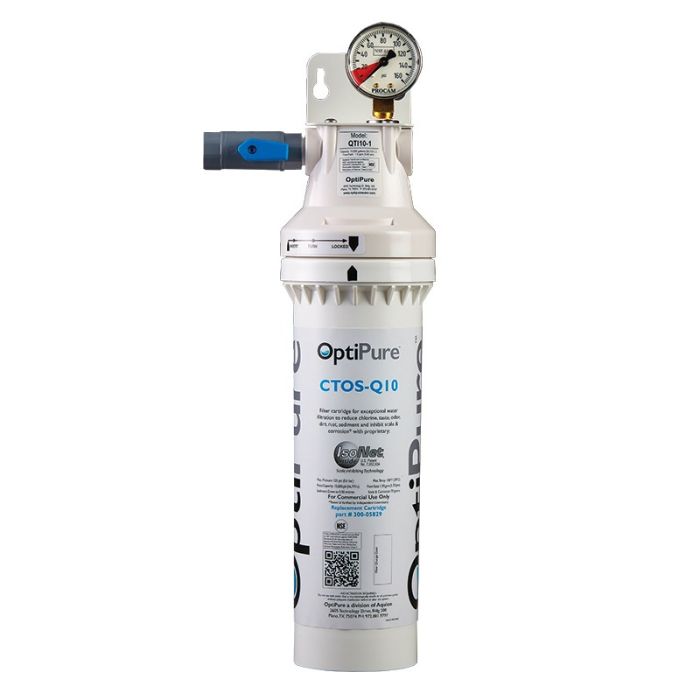

OPTIPURE Ice Maker QTI10-1

MODEL
QTI10-1

Login to view price

Additional Information
More Information
ModelQTI10-1
BrandOptiPure
Size (LxWxH) mm152 x 102 x 409
Warranty One Year Manufacturing Defect
OriginUnited States
Model QTI10-1
Dimension (L x W x H) 152 x 102 x 409mm
Connection - inlet & outlet 3/8" NFPT
Operating pressure range 10 to 125 psi (0.7 to 8.6 bar)
Inlet water temperature range 35°F to 100°F (2°C to 38°C)
Chlorine, taste and odor reduction capacity 15,000 gallons (56,750 litre)
Service flow rate 1.50 gpm (5.65 lpm)
Sediment reduction 0.5 microns (nominal)
Scale & corrosion inhibitor IsoNet (70g)
Spec Sheet (227.03 kB)
Manual (417.70 kB)

The QTI10-1 is a single-cartridge water treatment system with a 10" Qwik-Twist cartridge that reduces sediment down to 0.5-microns and reduces chlorine, taste, and odor at a flow rate of 1.5 gpm for 15,000-gallons. The system includes IsoNet®, OptiPure's patented scale inhibiting technology, which delivers consistent protection against the precipitation and accumulation of scale and provides a protective barrier to help guard against corrosion.

Features

  • NSF certified under standard 42
  • IsoNet® - OptiPure's patented scale inhibiting technology helps protect equipment against scale and corrosion for the rated capacity of the system
  • Reduces maintenance frequency and cost, and extends equipment life
  • Gradient-density sediment filtration protects against dirt, rust and other debris down to 0.5-microns
  • High-capacity activated-carbon filtration makes water taste great and protects equipment against corrosive chlorine
  • Sturdy mounting bracket and full-flow inlet shut-off valve simplify installation
  • Built-in pressure gauge allows visual monitoring of when filters need to be changed
  • Inlet shut-off valve makes filter replacement quick and simple
  • Utilizes Qwik-Twist cartridge that make changing filters quick, easy and sanitary
Application
  • Ice - Cubers up to 800 lbs (363kg), and flakers up to 1,000 lbs (454kg)
  • Coffee - Single or multiple Brewers up to 1.5 gpm
  • Steam and combi ovens
