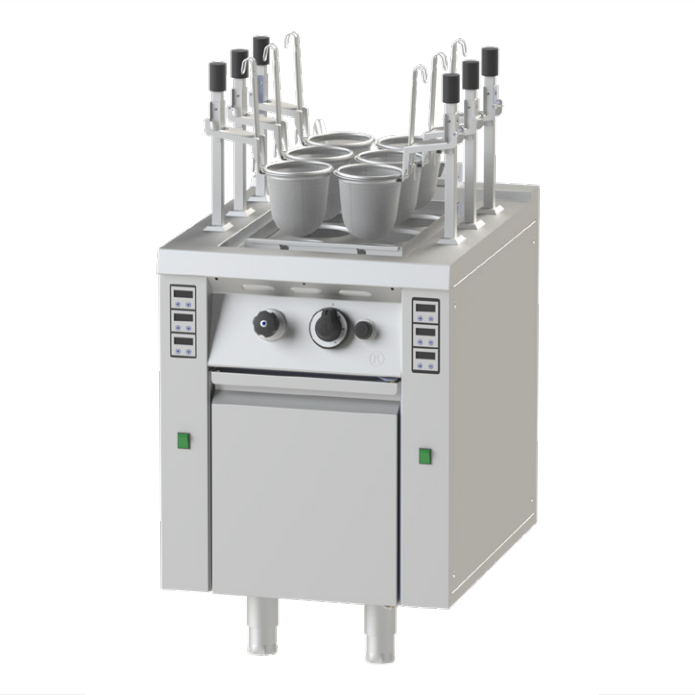

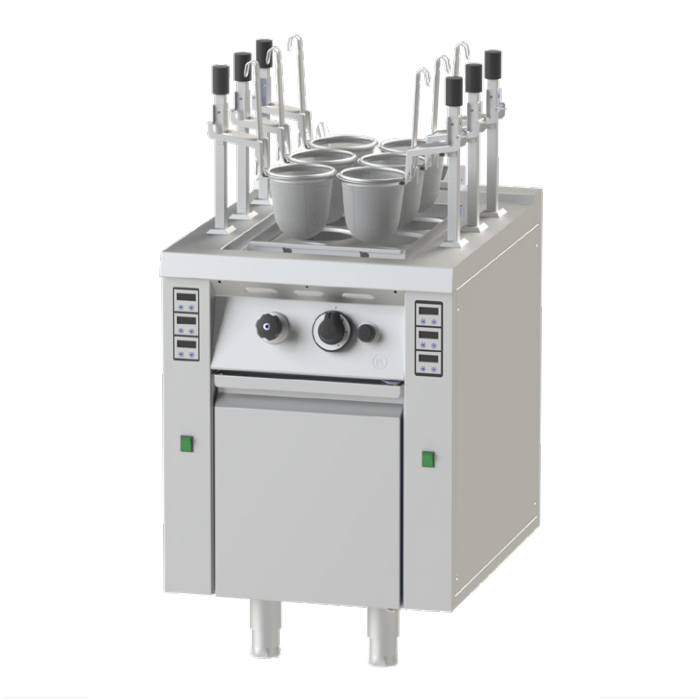

NAYATI Gas - Noodle Boiler NGN 16 ME

MODEL

NGN 16 ME

Additional Information

More Information
Model	NGN 16 ME
Brand	Nayati
Size (LxWxH) mm	600 x 750 x 900
Weight (KG)	96
Capacity (ℓ)	27
Warranty	One Year Manufacturing Defect
Origin	Indonesia

Model	NGN 16 ME
Cooking zones (L x W)	320 x 475 mm
Boiling Tank Capacity	27 Liters
No. of burners	1
Heat input	LPG/LNG 16 kW
Control type	High - low power control
Dimensions (L x W x H)	600 x 750 x 900 mm
Packing dimensions (L x W x H)	630 x 780 x 1020 mm
Net weight	96 kg
Gross weight	112 kg
Included Accessories	Noodle Basket (6 pcs), G20 Conversion Kit, Swing Door
Connections
Gas	DN20 (3/4")
Water	DN15(1/2")
Drain	DN25 (1")
Heat & Steam Emissions
Direct heat	3.12 kW
Latent heat	3.52 kW
Steam	5.17 kg/h

Features

Powered with 16 kW chrome-plated steel fin burner.
Usable for six noodle baskets with auto-lifting features.
Six individual timer, one for each baskets. Resettable through two button simultaneous push.
Tank outer surface is coated with special black paint to improve its thermal efficiency.
Manual water filling system with integrated knob on the front panel.
Piezzo ignition system with rubber cover.
Equipped with flame failure device.
Thermal-cut off when overheated.
