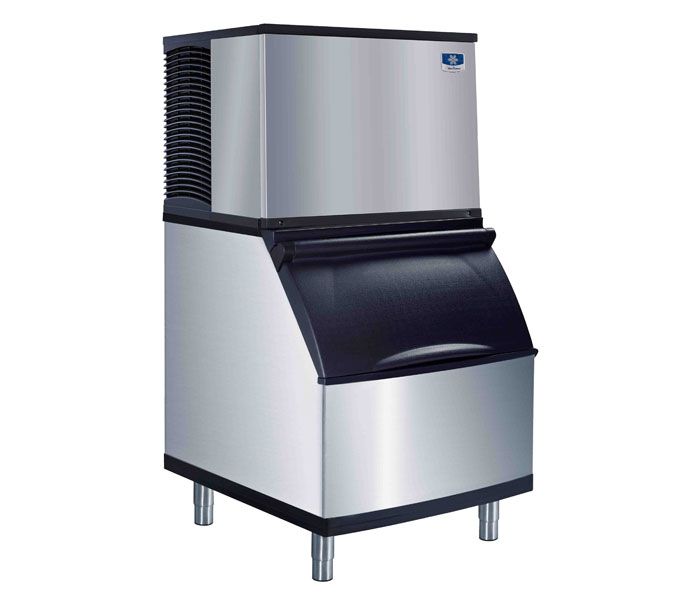

MANITOWOC 500lbs Ice Machine M-0500A

MODEL
M-0500A
Additional Information
More Information
ModelM-0500A
BrandManitowoc
Size (LxWxH) mm762 x 858 x 1511
Voltage220-240V
Warranty 3 Years On Parts ; 5 Years On Compressor
OriginUnited States
Model M-0500A
BTU per hour 5300 (average)
6100 (peak)
Compressor 3/4 HP
Refrigerant R-410A
Ambient temperature range 1.7°C to 43.3°C
Water temperature range 1.7°C to 32.2°C
Water pressure ice maker water in Min. 20psi (137.9 kPA)
Max. 80 psi (551.1kPA)
Voltage 220-240V
Frequency 50Hz
Phase 1
Air cooled 6.3A
Water cooled 5.9A
Maximum fuse size 15A
Bin storage 132 kg
Dimension (L x W x H) 762 x 858 x 1511 mm
M-Series Brochure (3.08 MB)
Spec Sheet (1.37 MB)
User Manual (1.86 MB)

M series ice machines are designed from the ground up to meet your operational demands. We used a combination of engineering experience and manufacturing expertise to create an affordable, reliable ice machine at a price that’s well within reach.

Features

  • Up to 226kg (499lbs) daily ice production and only 30" (76cm) wide
  • R-410A CFC-free refrigerant
  • Easy access to food zone with removal of two screws and lift-off door
  • White plastics in the food zone help identify areas needing cleaning
  • Water shield, distribution tube, pump, floats, and through removable by hand
  • Easy to clean, reusable air filter protects condenser from lint, grease and dust
