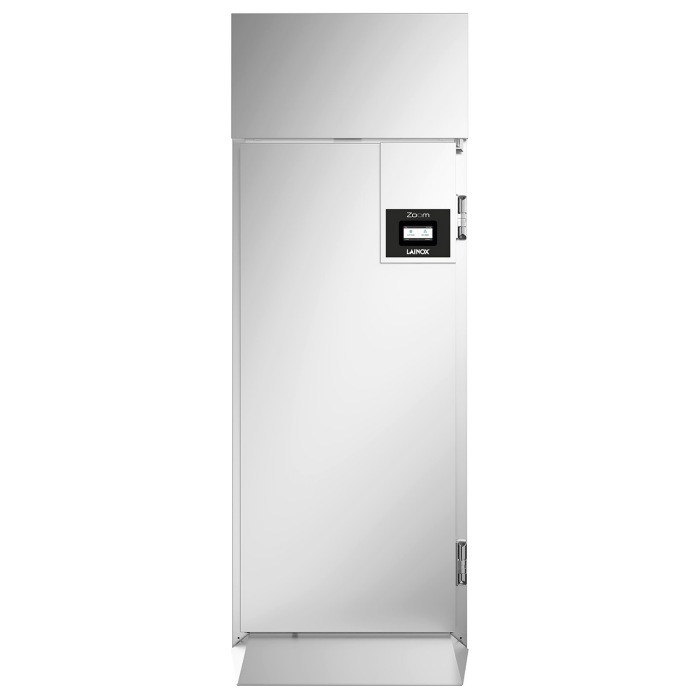

LAINOX Zoom Series Walk In Blast Chiller & Freezer Self -Contained Air Condensing Unit ZO201PAL
MODEL
ZO201PAL
Login to view price
Additional Information
| Model | ZO201PAL |
|---|---|
| Brand | Lainox |
| Size (LxWxH) mm | 890 x 1350 x 2400 |
| Weight (KG) | 600 |
| Voltage | 3N AC 400V - 50 Hz |
| Warranty | One Year Manufacturing Defect |
| Origin | Italy |
| Model | ZO201PAL |
| Capacity | 1 trolley (20 x GN 1/1 or 15 x GN 1/1 or 15 x EN 600 x 400) |
| Chilling capacity | 60 kg |
| Freezing capacity | 30 kg |
| Temperature range | -18°C to 3°C |
| Defrost type | Door open |
| n° of doors | 1 n° |
| n° of compartments | 1 n° |
| Refrigerant | R452A |
| Absorbed electrical power | 7546 W |
| Cooling power | 4920 W |
| Power supply | 3N AC 400V - 50 Hz |
| Nominal current | 9.03A |
| Noise level | 42.9 dB(A) |
| Floor height | 60 mm |
| Insulation thickness | 80 mm |
| Inner depth | 830 mm |
| Door opening width | 680 mm |
| Net height door | 1820 mm |
| Dimension (L x W x H) | 890 x 1350 x 2400 mm |
| Packed dimension (L x W x H) | 1150 x 1550 x 2590 mm |
| Net weight | 600 kg |
| Gross weight | 720 kg |
Features
- Condensing unit on board with air cooling
- Blast chilling
- Shock freezing
- Panel construction
- Stainless steel exterior (Scotch-Brite satin)
- Inner in stainless steel with rounded corners
- Inside bottom and floor die-formed leakproof
- Insulation in high density (42 kg/m³ approx.) expanded polyurethane, 80 mm thick, HCFC-free
- Thick stainless steel internal bumper to avoid damage caused by the trolley
- Copper-aluminum evaporator with cataphoresis anti-corrosion treatment
- High-ventilation evaporator to ensure the highest efficiency of the cooling system
- Anti-condensation resistance
- Hinged door with gasket and closing ramp system
- Ergonomic full-height door handle
- Heated core probe, with 4 measuring points
- Pre-cooling function
- Automatic storing at end of blast chilling
- Indirect blowing electronic fans, efficient but gentle on food
- 5” high-definition IPS capacitive TOUCH display, easy to use USB connection for uploading and downloading data and recipes
- Circuit breaker for compressor protection
- Class NT (ambient temperature +38°C)
