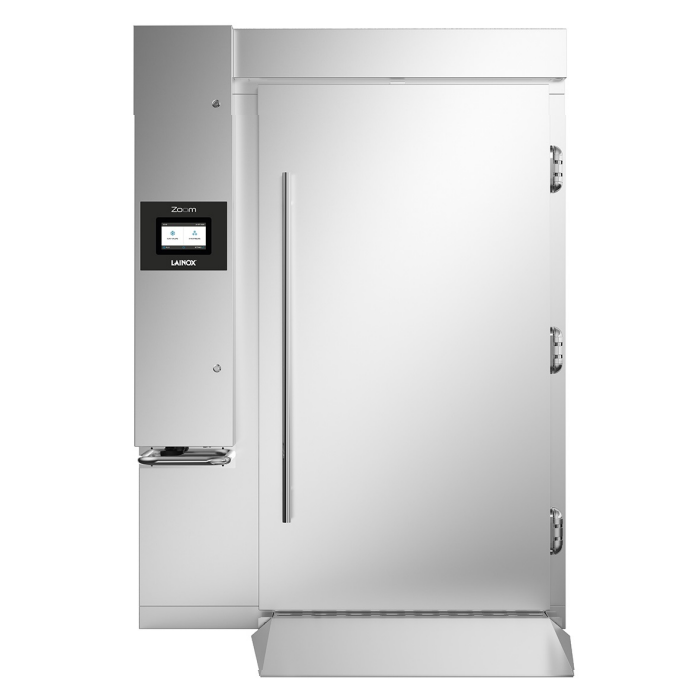

LAINOX Zoom Blast Chiller & Freezer Cell With Remote Air-Cooled Condensing Unit ZO801SP

MODEL
ZO801SP

Login to view price

Additional Information
More Information
ModelZO801SP
BrandLainox
Size (LxWxH) mm1300 x 3825 x 2200
Weight (KG)1724.24
Voltage400V-3N+PE 50Hz
Warranty One Year Manufacturing Defect
OriginItaly
Model ZO801SP
Capacity 4 trolleys (20 x GN 1/1 or 15 x GN 1/1 or 15 x EN 600 x 400)
Chilling capacity 480 kg
Freezing capacity 320 kg
Temperature range -18°C to 3°C
Internal setup Bumpers
n° of doors 2 n°
n° of compartments 1 n°
Refrigerant R452A
Absorbed electrical power 2670 W
Cooling power 30220 W
Power supply 400V-3N+PE 50Hz
Nominal current 12.21A
Noise level -
Climate class 5
Yield per cycle (+65/+10°C) kg 440
Yield per cycle (+65/-18°C) kg 240
Floor height 60 mm
Insulation thickness 80 mm
Inner depth 3640 mm
Door opening width 740 mm
Net height door 1820 mm
Dimension (L x W x H) 1300 x 3825 x 2200 mm
Packed dimension (L x W x H) 2400 x (4 x 1560) x 1540 mm
Net weight 1724.24 kg
Gross weight 1838.54 kg
Spec Sheet (372.79 kB)

Features

  • Remote condensing unit with high power, with protection cover
  • Blast chilling
  • Shock freezing
  • Panel construction
  • Stainless steel exterior (Scotch-Brite satin)
  • Inner in stainless steel with rounded corners
  • Inside bottom and floor die-formed leakproof
  • Insulation in high density (42 kg/m³ approx.) expanded polyurethane, 80 mm thick, HCFC-free
  • Thick stainless steel internal bumper to avoid damage caused by the trolley
  • Copper-aluminum evaporator with cataphoresis anti-corrosion treatment
  • High-ventilation evaporator to ensure the highest efficiency of the cooling system
  • Anti-condensation resistance
  • Hinged door with gasket and closing ramp system
  • Vertical ergonomic door handle with magnetic closure
  • External stainless steel protection to protect the control-board
  • Heated core probe, with 4 measuring points
  • Pre-cooling function
  • PLUS functions
  • Customised blast chilling and blast freezing cycles (300 cycles can be memorised)
  • Automatic storing at end of blast chilling
  • Indirect blowing electronic fans, efficient but gentle on food
  • 7” high-definition IPS capacitive TOUCH display, easy to use
  • Processes identifiable through photos
  • USB connection for uploading and downloading data and recipes
  • Circuit breaker for compressor protection
  • Electrical connections positioned frontally in the panel equipped with safety locks
