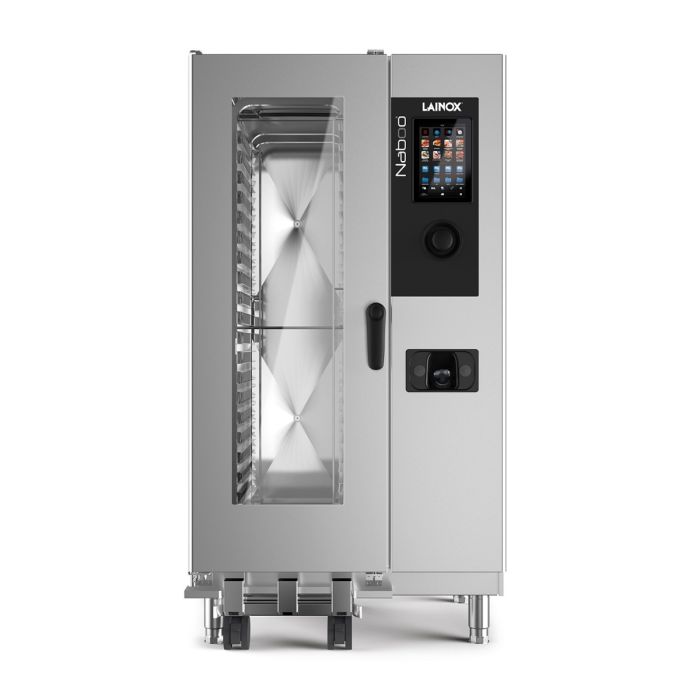

LAINOX Boiler Combination Oven NAEB201R

Standard equipment

• Automatic cleaning system LCS - supplied with 1 liquid cleanser cartridge cdl05 - 990 gr
• Cal-out descaling system for models with boiler - supplied with anti-scale product
• Multipoint core probe ø 3 mm
• Built-in and retractable hand shower with tap
• Wi-Fi connection
• USB connection
• Side runners

Cooking modes

• ICS (interactive cooking system), an automatic cooking system for Italian and international recipes
• Manual cooking with three cooking modes and instant cooking start:
• convection from 30°C to 300°C
• steam from 30°C to 130°C
• combination convection + steam from 30°C to 300°C
• Possibility to programme and save cooking methods in an automatic sequence (up to 15 cycles)
• Multilevel and jit mode

Nabook Wi-Fi connectivity

• Direct access from cooking device to recipe database, with optional download
• Synchronisation of devices connected to the same account
• HACCP monitoring
• Remote service
• Software update

Operation

• Display that can be configured based on the user’s needs, bringing forward the programmes used most
• Automatic “one touch” cooking (ICS)
• Intelligent recognition of recipes in multilevel folders
• Scroller plus knob with scroll and push function for confirming choices

Control mechanisms

• Auto reverse (automatic reverse of fan rotation) for perfect cooking uniformity
• Automatic parallel compartment and core temperature control, delta T system
• Automatically regulated steam condensation
• Ability to choose up to 6 fan speeds
• the first 3 speeds automatically trigger a reduction in heating power
• for special cooking methods, you can use an intermittent speed
• Possibility of setting device switch-off at the end of the automatic wash program
• LED cooking chamber lighting

Construction

• Stainless steel 18/10 AISI 304 of 1 mm cooking compartment with long radius rounded corners for a perfect cleaning
• Door with double tempered glass
• Internal glass that folds to open for easy cleaning
• Handle with left or right hand opening
• Adjustable hinge for optimal seal
• Deflector that can be opened for easy fan compartment cleaning
• IPX5 protection against water splashes
• Oven drain with built-in air gap
• Two water inlets (soft and cold water)

Steam generator

• AISI 304 fully insulated steam generator
• Alarm in case of boiler de-scaling required
• Boiler semi-automatic de-scaling program
• CALOUT system to prevent scale build-up within the boiler, as standard

Safety features

• Cooking compartment safety thermostat
• Cooking compartment safety device for pressure built-up and depression
• Fan motor thermic protection
• Magnetic door switch
• Lack of water displayed alarm
• Self-diagnosis and fault display
• Component cooling system with overheat display control
• Boiler safety thermostat
• Boiler water level probes
• Boiler probe to check boiler completely empty
