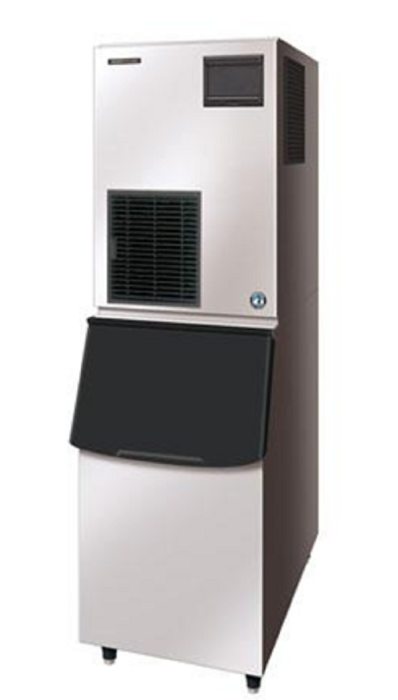

HOSHIZAKI Flake Ice Machine FM-480AKE

MODEL
FM-480AKE

Login to view price

Additional Information
More Information
ModelFM-480AKE
BrandHoshizaki
Size (LxWxH) mmRefer to the details below
Weight (KG)95
Voltage1/220 - 240V / 50 Hz
Warranty One Year Manufacturing Defect
OriginUnited Kingdom
Model FM-480AKE
Ice Shape Flake
Dimensions (mm) 560 x 700 x 780
Packed Dimensions (mm) 671 x 820 x 971
Weight (Nett / Gross) 95 Kg / 102 Kg
Amperage / Starting Amperage 8.4A / 43A
Electrical Consumption 1650W
Refrigerant Charge R404a
Heat Rejection 3320W (2854 kcal/h)
Ice Production Per 24H (15 mm) (AT 10°C / WT 10°C) : 500 Kg
(AT 21°C / WT 15°C) : 425 Kg
(AT 32°C / WT 21°C) : 325 Kg
Water Consumption Per 24H (AT 21°C / WT 15°C) 0.455 m³
1L / 1 Kg Ice
Voltage Range 198V - 254V
Ambient Temperature 1° - 40°C
Water Supply 5° - 35°C / 0.05-0.8 Mpa / 7.25-116 PSI
AC Supply Voltage 1/220 - 240V / 50 Hz

Dimensions

Dimensions

Back View

Back View

Ice Type

Ice Type

Instruction Manual (696.21 kB)
