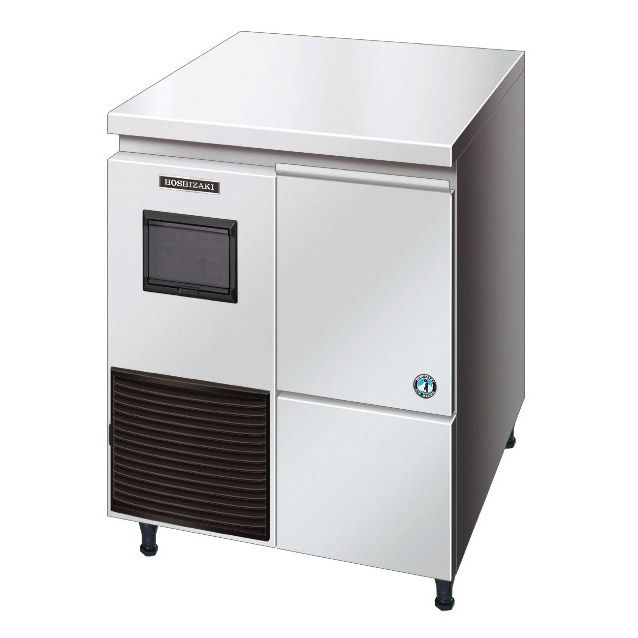

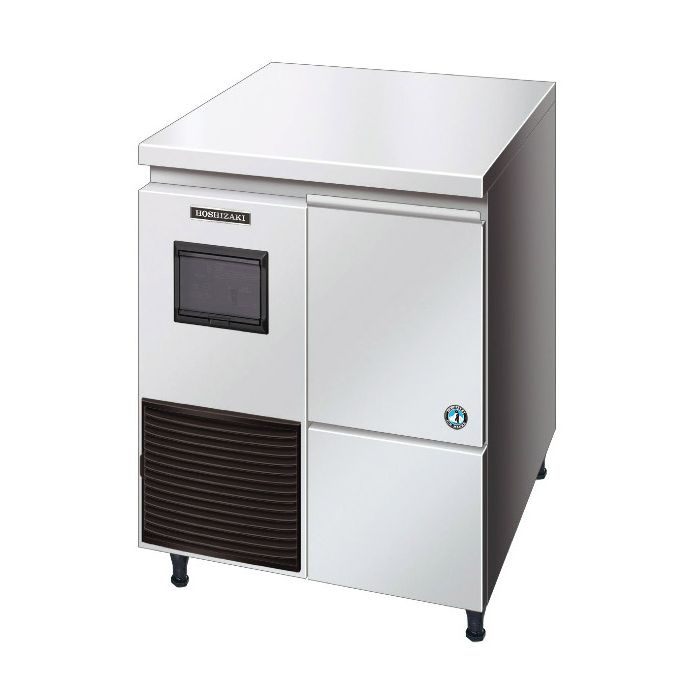

HOSHIZAKI Flake Ice Machine FM-150KE

MODEL
FM-150KE

Login to view price

Additional Information
More Information
ModelFM-150KE
BrandHoshizaki
Size (LxWxH) mmRefer to the details below
Weight (KG)71
Voltage198V - 254V
Warranty One Year Manufacturing Defect
OriginUnited Kingdom
Model FM-150KE
Ice Shape Flake
Dimensions (mm) Body : 640 x 600 x 711 / Leg Height : 89-120 mm
Packed Dimensions (mm) 746 x 706 x 887
Weight (Nett / Gross) 71 Kg / 82 Kg
Amperage / Starting Amperage 5.1 A / 20A
Electrical Consumption 640 W
Refrigerant Charge R134a
Heat Rejection 1120 W (963 kcal/h)
Ice Production Per 24H (15 mm) (AT 10°C / WT 10°C) : 150 Kg
(AT 21°C / WT 15°C) : 130 Kg
(AT 32°C / WT 21°C) : 110 Kg
Water Consumption Per 24H (AT 21°C / WT 15°C) 0.130m³
1L / 1 Kg Ice
Storage Capacity 26 Kg
Voltage Range 198V - 254V
Ambient Temperature 1° - 40°C
Water Supply 5° - 35°C / 0.05-0.8 Mpa / 7.25-116 PSI
AC Supply Voltage 1/220 - 240V / 50 Hz

Dimensions



Ice Type

   Ice Type

Instruction Manual (538.79 kB)
