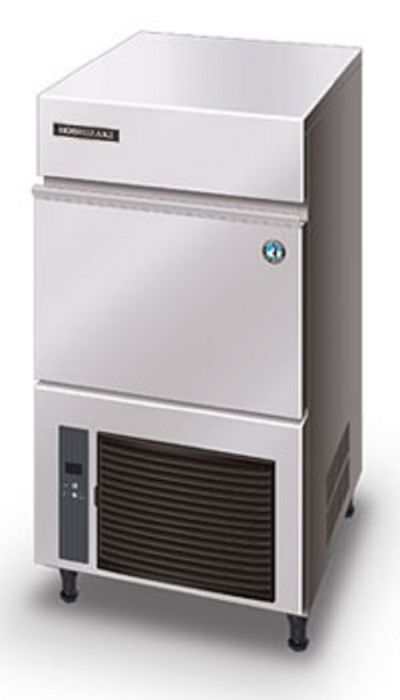

HOSHIZAKI Cube Ice Maker IM-45NE

MODEL
IM-45NE

Login to view price

Additional Information
More Information
ModelIM-45NE
BrandHoshizaki
Energy TypeElectric
Size (LxWxH) mm503 x 456 x 930
Weight (KG)46
Voltage1phase / 220-240V / 50Hz
Warranty Two Years Manufacturing Defect
OriginUnited Kingdom
Model IM-45NE
Storage capacity 18 kg
Amperage / Starting amperage 2.4A / 13A
Electrical consumption 330 W
Refrigerant charge R134a
Heat rejection (AT 32°C /WT 21°C) 640 W (550 kcal/h)
Water supply temperature 5°C - 35°C
Water supply pressure 0.07-0.78 MPa (0.7-8 bar)
Voltage range  198V-254V
Ambient temperature 1°C - 40°C
AC supply voltage  1phase / 220-240V / 50Hz
Water consumption per 24H (AT 21°C / WT 15°C) 0.10 m3, 2.5L / 1kg Ice
Ice production per 24H (15mm) AT 10°C / WT 10°C 44 KG
AT 21°C / WT 15°C 40 KG
AT 32°C / WT 21°C 32 KG
Ice production (AT 21°C / WT 15°C) Freeze cycle time 28 min
Per cycle 0.67 kg / 30pcs
Ice dimensions (L x W x H) 28 x 28 x 32 mm
Dimensions (L x W x H) Body: 503 x 456 x 930 mm / Leg height : 90-125 mm
Packed dimensions (L x W x H) 635 x 600 x 1021 mm
Net weight 46 kg
Gross weight 51 kg
Spec Sheet (2.57 MB)
User Manual (2.64 MB)

Features

  • Smart computer board technology
  • Slide-in air filter for easy cleaning
  • LED error indicator for easy diagnosis
  • Stainless steel exterior
