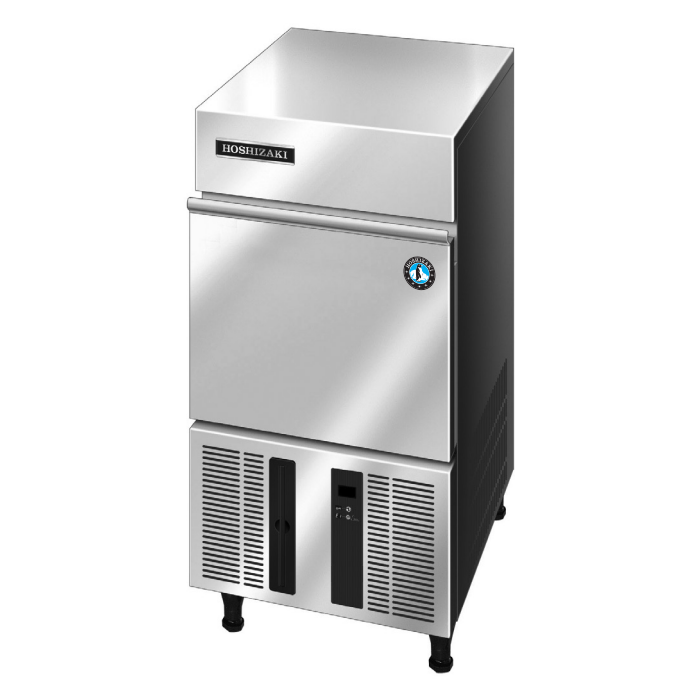

HOSHIZAKI Cube Ice Maker IM-30CNE

MODEL
IM-30CNE

Login to view price

Additional Information
More Information
ModelIM-30CNE
BrandHoshizaki
Energy TypeElectric
Size (LxWxH) mm398 x 446 x 820
Weight (KG)34
Voltage220-240V / 50Hz
Warranty Two Years Manufacturing Defect
OriginUnited Kingdom
Model IM-30CNE
AC supply voltage 1 phase / 220-240V / 50Hz
Running amperage 1.7A
Starting amperage 10A
Electrical consumption 270W
Refrigerant charge R134a
Heat rejection 430W (370 kcal/h)
Ambient temperature 1 - 40°C
Water supply temperature 5 - 35°C
Water supply 0.07-0.8 Mpa / 7.25-116 PSI
Ice production per 24h (15mm) Air temp 10°C ; Water temp 10°C 28 kg
Air temp 21°C ; Water temp 15°C 24 kg
Air temp 32°C ; Water temp 21°C 19 kg
Water consumption per 24H (At 21°C / WT 15°C) 0.06 m3
2.5L / 1kg Ice
Ice production (At 21°C / WT 15°C) Freezer cycle time 24 min
Per cycle 0.4kg / 18pcs
Storage capacity 11.5 kg
Ice dimension (L x W x H) 28 x 28 x 32 mm
Dimension (L x W x H) 398 x 446 x 820 mm
Packed dimension (L x W x H) 505 x 575 x 880 mm
Net weight 34 kg
Gross weight 38 kg
Spec Sheet (543.58 kB)
Instruction Manual (2.64 MB)

Features

  • Smart computer board technology
  • Slide-in air filter for easy cleaning
  • LED error indicator for easy diagnosis
  • Stainless steel exterior
