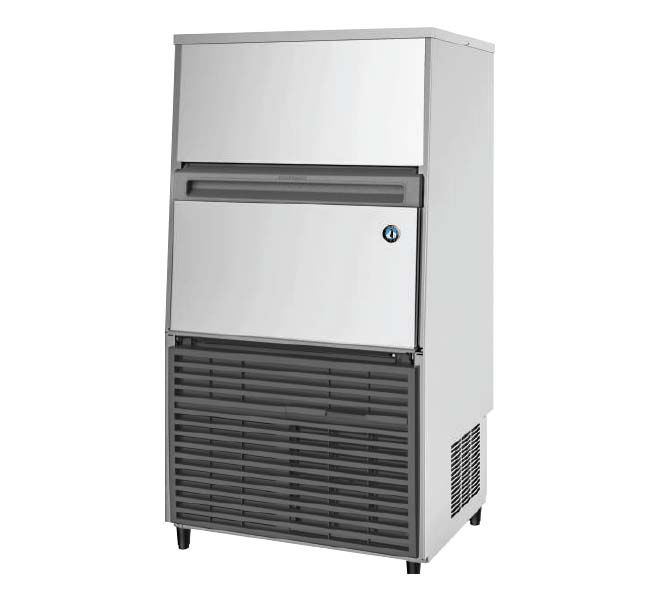

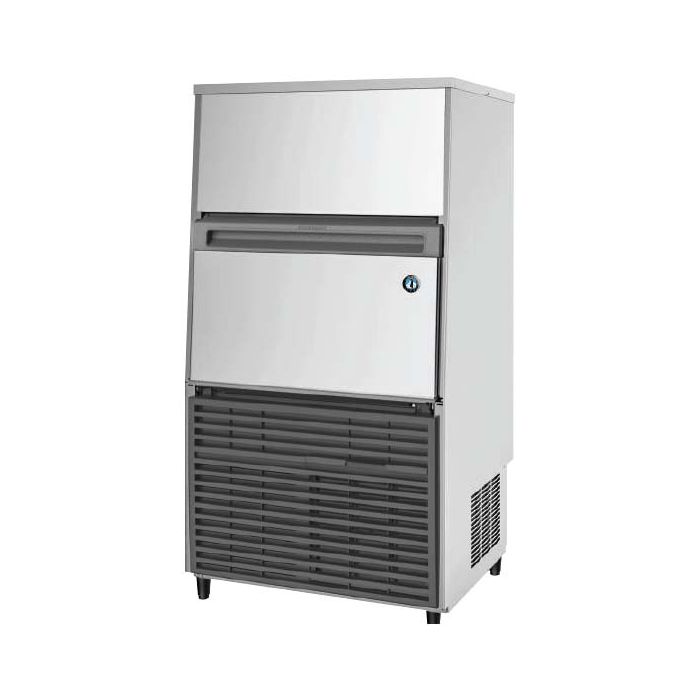

HOSHIZAKI CUBE ICE MAKER IM-130A

MODEL

IM-130A

Additional Information

More Information
Model	IM-130A
Brand	Hoshizaki
Size (LxWxH) mm	660 x 570 x 1200
Weight (KG)	79
Voltage	198V - 254V
Warranty	Two Year Manufacturing Defect
Origin	United Kingdom

Model	IM-130A
Ice production per 24hr (15mm)	(AT10°C/WT10°C)	126 kg
	(AT21°C/WT15°C)	125 kg
	(AT32°C/WT21°C)	100 kg
Ice production per cycle (AT32°C/WT21°C)	Approx. 1.8 kg / 80 pcs Freeze cycle time per cycle 27 minutes
Water consumption per 24hr (AT32°C/WT21°C)	0.19m³ = 1.9 litres / 1 kg ice
Voltage	198V - 254V
AC supply voltage	1 / 220-240V
Frequency	50Hz
Electrical consumption (AT32C/WT21C)	630W
Amperage / starting amperage	2.7A / 25A
Ambient temperature	1°C - 40°C
Water supply	5°C - 35°C / 0.07 - 0.78Mpa / 7.25-116 PSI
Refrigerant charge	R404a / 350g
Heat rejection (AT32C/WT21C)	1410W 1213 kcal/h
Ice dimension (L x W x H)	28 x 28 x 32 mm (Standard size)
	21 x 21 x 14 mm (21 mm size)
Dimension (L x W x H)	660 x 570 x 1200 mm
Packing dimension (L x W x H)	760 x 680 x 1379 mm
Net weight	79 kg
Gross weight	98 kg
