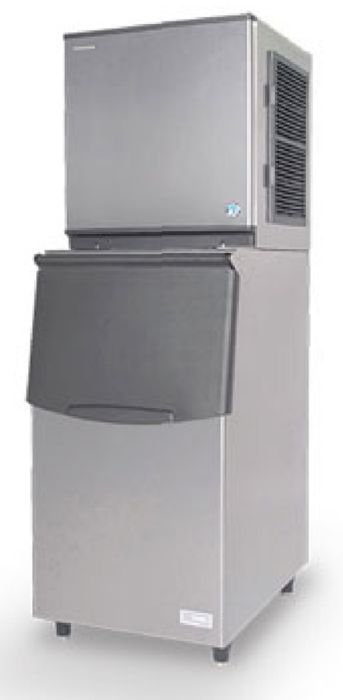

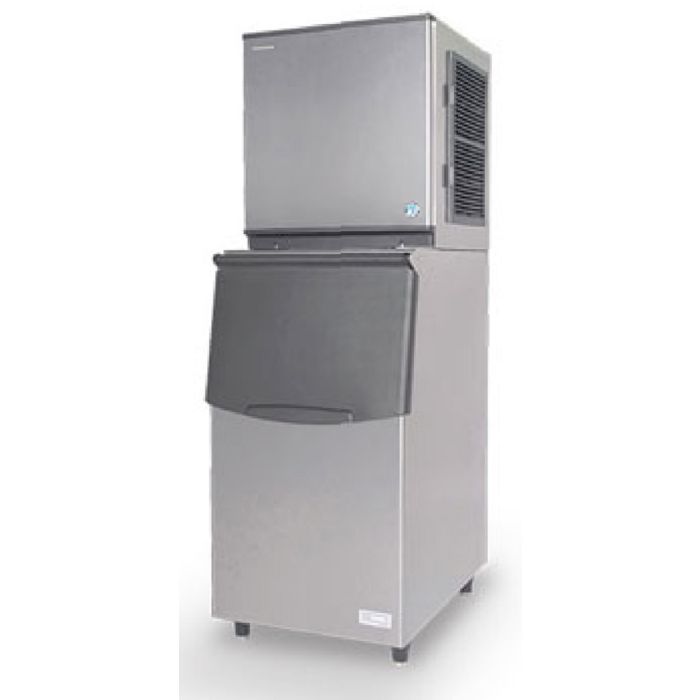

HOSHIZAKI Crescent Ice Makers (Modular) KMD-270AB

MODEL
KMD-270AB

Login to view price

Additional Information
More Information
ModelKMD-270AB
BrandHoshizaki
Energy TypeElectric
Size (LxWxH) mm560 x 625 x 610 mm
Warranty Two Years Manufacturing Defect
OriginJapan
Model KMD-270AB
Ice Dimensions (LxWxH) (mm)
37 x 30 x 13 mm
External Dimensions (LxWxH) (mm)
560 x 625 x 610 mm
Packed Dimensions (LxWxH) (mm)
668 x 727 x 793 mm
Weight in kg (Nett / Gross)
57 / 73
Amperage / Starting Amperage 4.9A / 24A
Electrical Consumption 1030 W
Refrigerant Charge
R404a
Heat Rejection (AT 32°C / WT 21°C) 2435 W (2094 kcal/h)
Ice Production Per 24H (15MM)
(AT 10°C / WT 10°C) 265 kg
(AT 21°C / WT 15°C) 248 kg
(AT 32°C / WT 21°C) 221 kg
Water Consumption Per 24H (AT 21°C / WT 15°C)
0.54 m3, 2.2L / 1kg Ice
Ice Production (AT 21°C / WT 15°C)
Freeze Cycle Time 30.2 Min
Per Cycle 5.7 kg / 624 Pcs
Voltage Range 198V-254V
Ambient Temperature
1°-40°C
Water Supply
5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI
AC Supply Voltage 1/220-240V / 50 Hz
