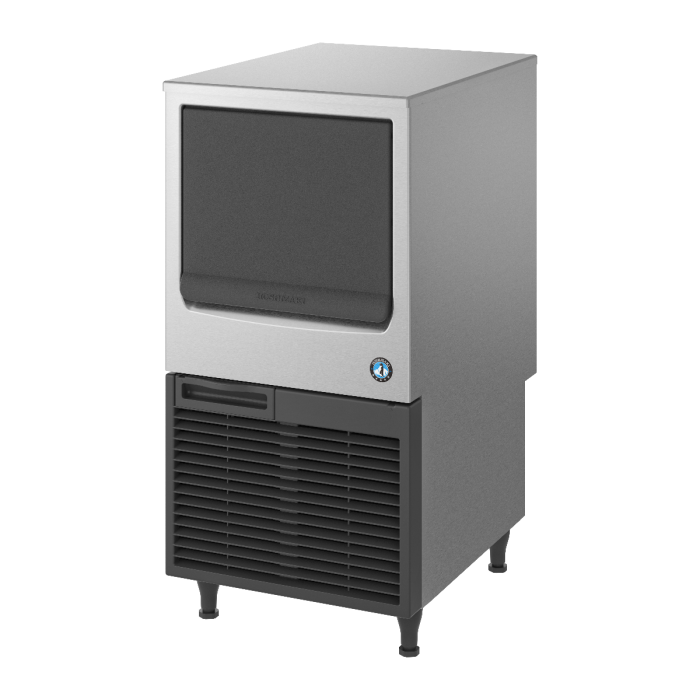

HOSHIZAKI Crescent Ice Makers KM-40B

MODEL
KM-40B

Login to view price

Additional Information
More Information
ModelKM-40B
BrandHoshizaki
Size (LxWxH) mm452 x 617 x 842
Weight (KG)40
Voltage220-240V / 50Hz
Warranty One Year Manufacturing Defect
OriginJapan
Model KM-40B
AC supply voltage 1 phase / 220-240V / 50Hz
Running amperage 1.7A
Starting amperage 8.5A
Electrical consumption 278W
Refrigerant charge R134a / 210g
Heat rejection 620W (533 kcal/h)
Ambient temperature 1 - 40°C
Water supply temperature 5 - 35°C
Water supply 0.07-0.8 Mpa / 7.25-116 PSI
Ice production per 24h (15mm) Air temp 10°C ; Water temp 10°C 43 kg
Air temp 21°C ; Water temp 15°C 41 kg
Air temp 32°C ; Water temp 21°C 33 kg
Water consumption per 24H (At 21°C / WT 15°C) 0.09 m3
Ice production (At 21°C / WT 15°C) Freezer cycle time 25 min
Per cycle 0.78kg / 80pcs
Storage capacity 16 kg
Ice dimension (L x W x H) 37 x 30 x 13 mm
Dimension (L x W x H) 452 x 617 x 842 mm
Packed dimension (L x W x H) 535 x 705 x 955 mm
Net weight 40 kg
Gross weight 50 kg
Brochure (3.32 MB)
User Manual (347.29 kB)

This Hoshizaki KM Edge ice maker is a self-contained ice maker producing up to 41 kg of clear, hard crescent ice per 24 hours.

Features

  • Upward opening for easy access
  • Slide-in air filter for easy cleaning
  • Automatic self-flushing
  • Easy to disassemble for portability
  • Audible controller board
  • Stainless steel evaporator
  • Quiet 58dB noise level
