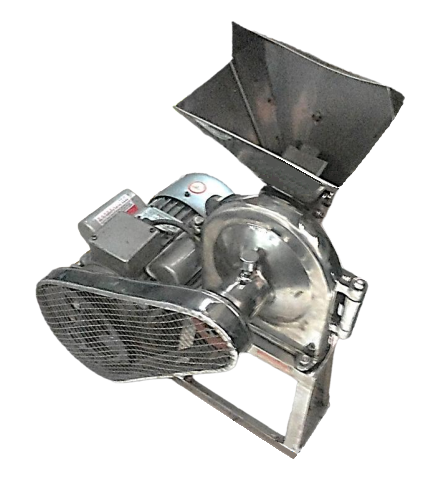

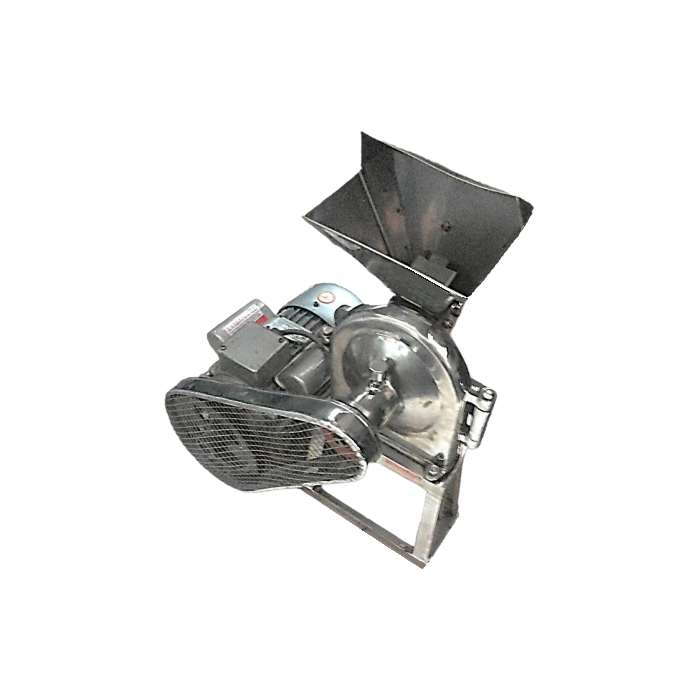

Golden Bull S/S China Disk Mill 3000rpm C/W 15HP Motor FFC-45(S/S) c/w Y2 15hp4p
MODEL
FFC-45(S/S) c/w Y2 15hp4p
Additional Information
| Model | FFC-45(S/S) c/w Y2 15hp4p |
|---|---|
| Brand | Golden Bull |
| Size (LxWxH) mm | 1150 x 755 x 1425 |
| Warranty | 3 Months Manufacturing Defect |
| Origin | China |
| Model | FFC-45(S/S) c/w Y2 15hp4p |
| Rotational speed of main shaft | 3000 rpm |
| Outer dia. of the rotor (including flat tooth) | 450mm |
| No. of oblate gears of the rotator | 5 pcs |
| No. of knuckle gears of the rotator | 12 pcs |
| Circles of square gears of the gear wheel | 2 circles |
| Pitch between the oblate gear & screen | 16.5mm |
| Sieve size (screen strap) | 0.6mm, 1.2mm, 3.5mm |
| Motor power | 15HP 415V |
| Motor speed | 1500 rpm |
| Dimension (L x W x H) | 1150 x 755 x 1425mm |
| Weight (excluding motor) | 224 kg |
Output (kg/hr) of FFC-45:
|
Articles |
Sieve size of screen |
Output |
|
Corn |
1.2mm |
480 kg/hr |
|
Soya beans |
0.6mm |
250 kg/hr |
|
Dried sweet-potato slices |
750 kg/hr |
|
|
Da Huang |
- |
