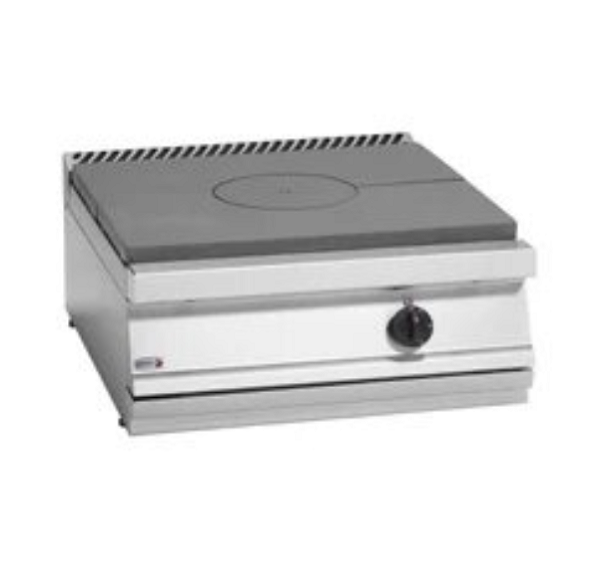

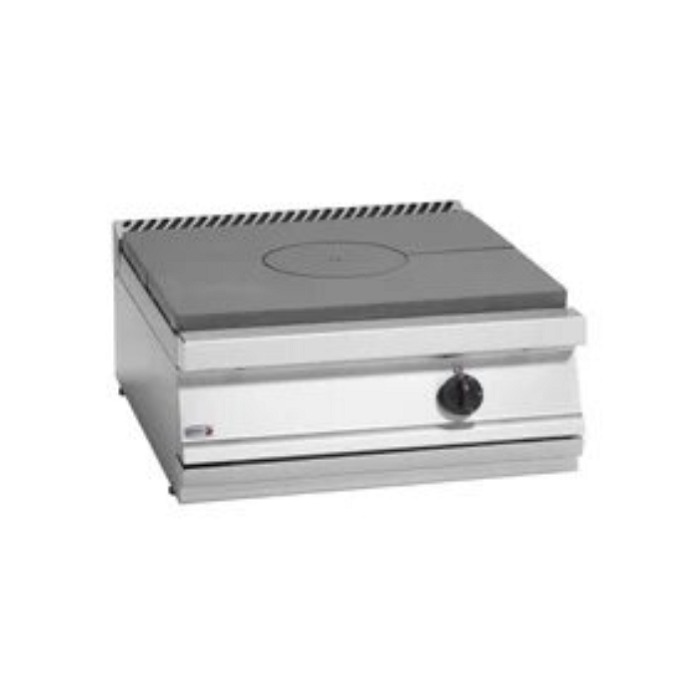

FAGOR Gas Range Solid Top CG7-10

MODEL
CG7-10

Login to view price

Additional Information
More Information
ModelCG7-10
BrandFagor
Size (LxWxH) mm800 x 730 x 290
Warranty One Year Manufacturing Defect
OriginSpain
Spec Sheet (142.51 kB)
Catalogue (13.24 MB)

Features

  • Surface tops manufactured in 1.5 mm thick AISI-304 stainless steel
  • Laser-cut joints and automatic welding
  • 10 mm-thick cast iron plate with rounded corners
  • Fry-top dimensions: 800 x 580 mm
  • Shield with 300 mm diameter
  • Refractory brick inside for improved heat use and distribution
  • Differentiated usage temperatures: 500 °C at the centre and 200 °C at the edges
  • Double-crown burner and diffuser made of cast iron which guarantee an even distribution of heat from the flame
  • Burner power: 8.4 kW
  • Low-consumption pilot light and thermocouple located within the body of the burner for greater protection
  • Flexible stainless-steel gas pipes, facilitating internal manipulation in order to make repairs easier
  • Controls with a protective support base and system to prevent water infiltration
  • High-temperature enamelled cast iron flue protector which is flush with the grates therefore improving manoeuvrability, supporting larger containers and increasing the usable surface area
  • Access to components from the front
