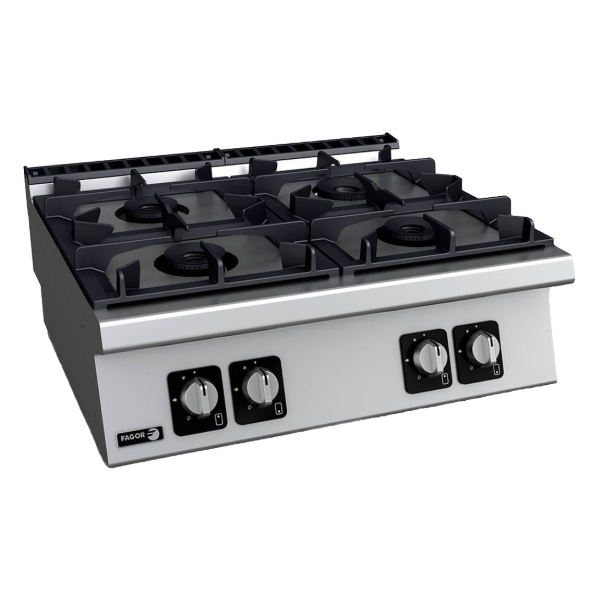

FAGOR Gas Range 4 Open Burner C-G740H

MODEL
C-G740H

Login to view price

Additional Information
More Information
ModelC-G740H
BrandFagor
Size (LxWxH) mm800 x 730 x 290
Weight (KG)56
Warranty One Year Manufacturing Defect
OriginSpain
Model C-G740H
Gas type LPG
Gas power 32 kW
Gas consumption 2.297 kg/h
Regulated LPG G30/G31 28-30/37 mba
Gas diameter 1 R.3/4"G
Product dimension (L x W x H) 800 x 730 x 290 mm
Packing dimension (L x W x H) 840 x 822 x 535 mm
Net weight 56 kg
Gross weight 74 kg
Spec Sheet (958.24 kB)

Features

  • Deep-drawn surface tops manufactured in 1.5 mm thick AISI-304 stainless steel.
  • Laser-cut joints and automatic welding. Hidden screws.
  • 397 x 580 mm double grates (397 x 290 mm for each burner).
  • Distance of 75 mm between the central bars makes it possible to use pots with a very small diameter (8 cm).
  • The grates are made of RAAF enamelled cast iron (resistant to alkaline and acid products, fire and high temperatures).
  • Double-crown burners and diffusers made of nickel-plated cast iron.
  • Burners are easy to position.
  • Low-consumption pilot light and thermocouple.
  • Flexible stainless-steel gas pipes, facilitating internal manipulations.
  • Controls with a protective support base and system.
  • High-temperature enamelled cast iron flue protector.
  • Access to components from the front.
  • Four burners on the worktop with different powers, enabling the use of different pots and pans and different foods: 4 x 8,0 kW (Ø 120 mm).
