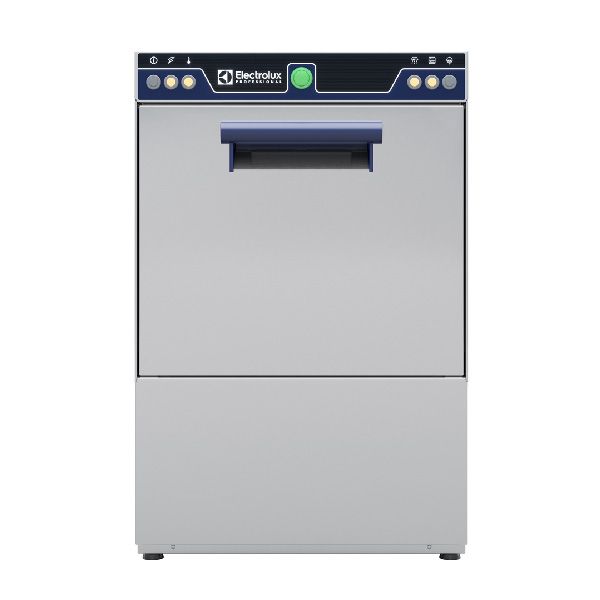

ELECTROLUX Warewashing Small Single Skin Glasswasher and Rinse Aid Dispenser, 1 cycle, 30b/h 402288

MODEL
402288
Additional Information
More Information
Model402288
BrandElectrolux
Size (LxWxH) mm455 x 550 x 700
Weight (KG)36.5
Voltage220-240 V/1 ph/50 Hz
Warranty One Year Manufacturing Defect
OriginSweden
Model 402288
Washing tank capacity  12 litre
Boiler capacity  3 litre
Voltage 220-240 V/1 ph/50 Hz
Noise level 61 dBA
Default installed power 2.7 kW
Boiler heating elements 2.7 kW
Tank heating elements 2.4 kW
Wash pump size 0.2 kW
Pressure range 2-5 bar
Water supply temperature 10-50°C
Drain line size 29 mm
Water consumption per cycle  2 litre
Incoming water line size 3/4"
Production 30 baskets/hour
Wash temperature 60°C
Rinse temperature 85°C
Cell dimension (L x W x H) 405 x 437 x 315 mm
External dimension (L x W x H) 455 x 550 x 700 mm
Packing dimension (L x W x H) 540 x 630 x 850 mm
Net weight 36.5 kg
Gross weight 41 kg
Spec Sheet (417.86 kB)

Features

  • Built-in rinse aid dispenser with automatic initial and continuous cycle loading
  • Deep drawn pressed wash tank with fully rounded corners, sloped towards the drain
  • Pressed wash tank with no welded points offer a guaranteed water tight solution
  • 120 seconds cycle
  • Built-in pressure boiler designed to raise incoming water
  • No external boiler is required
  • Maximum capacity of 30 racks per hour
  • Single phase electrical cable and Schuko plug for easy and fast installation
  • Easy service access to main components without moving the unit
  • Washing system endowed with rotating washing arms
  • High powered wash pump
  • Large capacity wash tank
