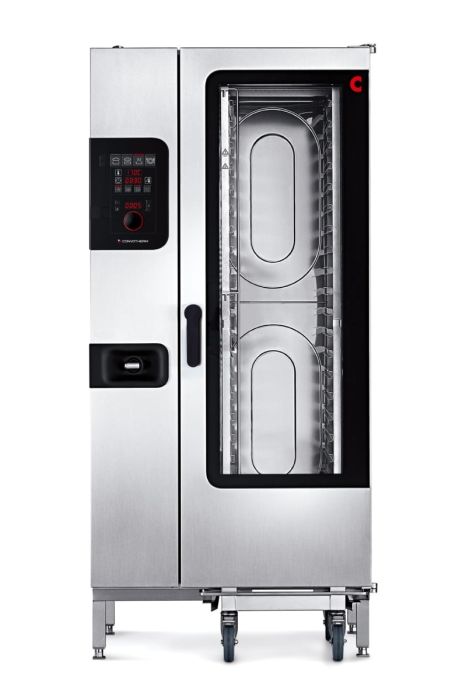

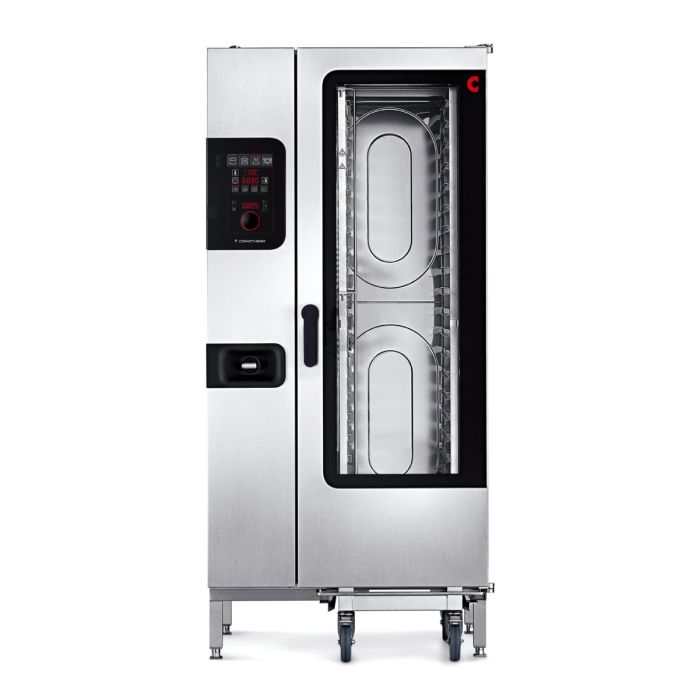

CONVOTHERM 4 Electric Boiler 20.10 easyDial With Disappearing Door & Semi-automatic Clean C4eD20.10 EBDD
MODEL
C4eD20.10 EBDD
Additional Information
| Model | C4eD20.10 EBDD |
|---|---|
| Brand | Convotherm |
| Size (LxWxH) mm | 1002 x 886 x 1992 |
| Weight (KG) | 285 |
| Voltage | 3N~ 400V 50/60Hz |
| Warranty | One Year Manufacturing Defect |
| Origin | Germany |
| Model | C4eD20.10 EBDD | |
| Max. number of food containers | GN 1/1 20 | |
| Electrical supply | Voltage | 3N~ 400V 50/60Hz |
| Rated power consumption | 38.9 kW | |
| Rated current | 56.2 A | |
| Fuse rating | 63 A | |
| Water connection | Water supply | 2 x G 3/4'' permanent connection, optionally including connecting pipe (min. DN13 / 1/2'') |
| Flow pressure | 150 - 600 kPa (1.5 - 6 bar) | |
| Max. water flow rate | 15 l/min | |
| Product dimension (L x W x H) | 1002 x 886 x 1992 mm | |
| Packing dimension (L x W x H) | 1165 x 970 x 2150 mm | |
| Net weight | 285 kg | |
| Gross weight | 325 kg | |
easyDial user interface
- All functions are set in one operating level
- Central control unit, Convotherm-Dial (C-Dial)
- Digital display
- Regenerating function – regenerates products to their peak level
- 99 cooking profiles each containing up to 9 steps
Features
- Steam generated by high-performance boiler outside the cooking chamber
- ACS+ operating modes: Steam, Combi-steam, Convection
- ACS+ (Advanced Closed System +) operating modes:
- Steam (30-130°C) with guaranteed steam saturation
- Combi-steam (30-250°C) with automatic humidity adjustment
- Hot air (30-250°C) with optimized heat transfer
- ACS+ extra functions:
- Crisp&Tasty – 5 moisture-removal settings
- BakePro – 5 levels of traditional baking
- HumidityPro – 5 humidity settings
- Controllable fan – 5 speed settings
- HygienicCare – food safety thanks to antibacterial surfaces:
- easyDial control panel
- Door handle and recoil hand shower
- Semi-automatic cleaning system
- TriColor indicator ring – indicates the current operating status
- Disappearing door: more space and greater safety at work (optionally available for an extra charge)
- Multi-point core temperature probe
- Door handle with safety latch
- USB port integrated in the control panel
- Data storage for HACCP and pasteurization figures
- Preheat and cool down function
