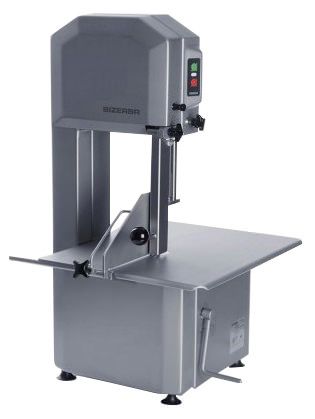

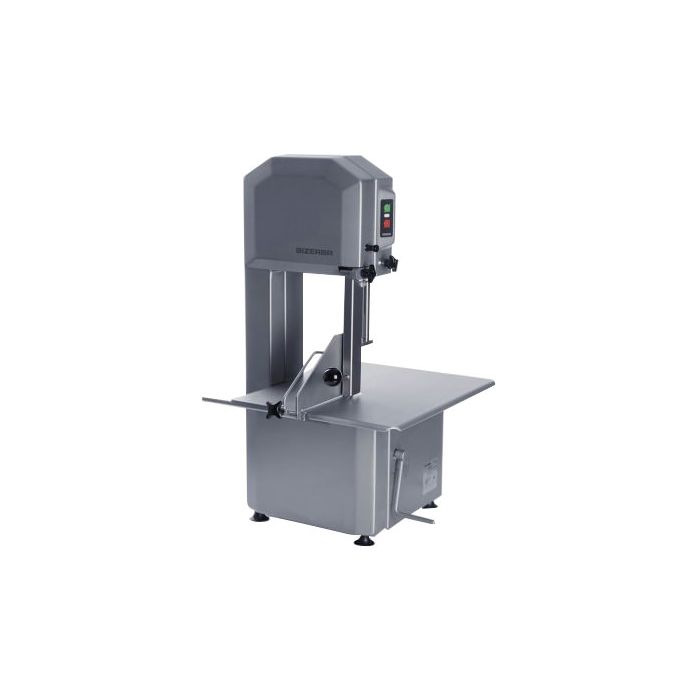

Specifications | Facts | Details |
Dimensions  | ||
Installation area (LxW) (mm) | 360 x 350 | Â |
Work area (LxWxH) (mm) | 520 x 580 x 857 | Â |
Saw blade (LxWxH) (mm) | 1760 x 15 x 0.45 | Â |
Wheel diameter (mm) | 220 | Â |
Electrical data  | ||
Power Consumption |
120V, 60Hz, 12A 230V, 50Hz, 5.3A 230V, 50Hz, 4A 400V, 50Hz, 2.3A |
Single phase altern. current Single phase altern. current Three-phase Current Three-phase Current |
Protection type | IP55 | Â |
Performance data  | ||
Cutting height | max 250 mm | Â |
Slicing width | min/max. 10-190 mm | Â |
Saw blade speed |
ca. 17 m/sec 82.6 ft/s |
 |
Sales package  | ||
Dimensions (LxWxH) (mm) | 650 x 590 x 940Â | Â |
Weight |
ca. 54 kg ca. 60 kg |
Including packaging |
Â
# This item needs to be indentÂ
Standard FeaturesÂ
1. Optimized product pusher with height-adjustable blade guard and saw blade guide.
2. Different saw and blade bands available for different application
3. Quick, easy and injury-free saw blade change.
4. Larger workbench (810 x 530 mm)
5. Stainless steel bench type stand with feet
6. Special saw blades
