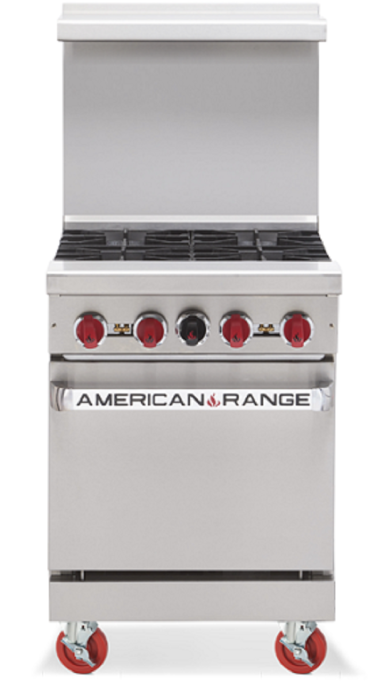

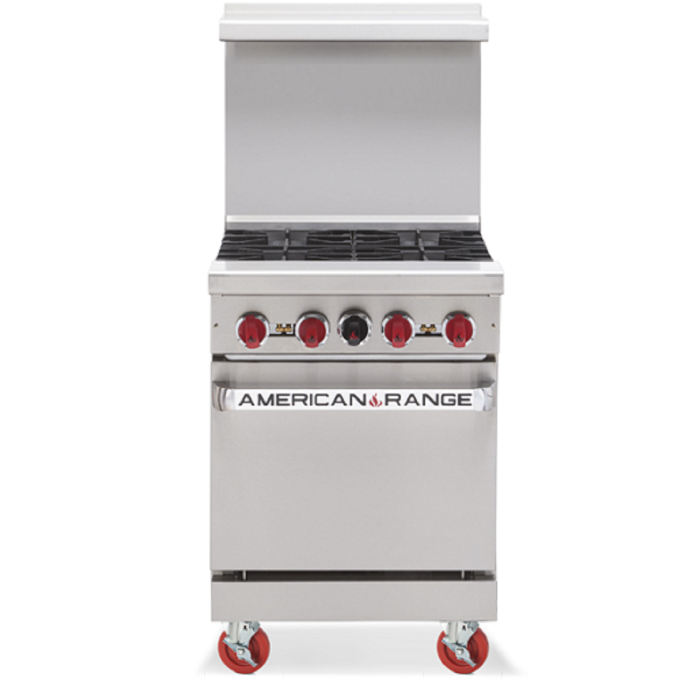

AMERICAN RANGE 4 Open Burner with Oven AR-4

Standard Features

1. All Stainless Steel front, sides, high shelf & riser
2. Heavy gauge welded frame construction.
3. 6” Stainless Steel heavy duty landing ledge.
4. 12” x 12” Sectioned Cast Iron Top Grates
5. 32,000 BTU/hr. lift-off open burners.
6. Porcelainized oven interior
7. One chrome plated rack per oven.
8. 100% safety oven pilot.
9. 6” chrome plated steel legs.
10. Casters available.
11. Cavity depth will accommodate full size sheet pan, front to back
12. One year limited warranty, parts and labor.

Standard Oven

1. Sturdy, welded front frame provides stability to the range
2. Pull-off Stainless Steel door for easy cleaning.
3. Thermostat controls temperature from 150°F to 500°F
4. One chrome plated oven rack (Additional racks optional)
5. Porcelain enamel finish inside oven bottom, sides, back, and door liner.
6. Steel burner rated at 27,000 BTU/hr
7. 100% safety gas shut off.
8. • Matchless push button ignition to light a standing pilot.

 Open Burners

1. Heavy duty sectioned cast iron top grates.
2. Two piece, lift-off, easy clean burners, rated at 32,000 BTU/hr. each.
3. One standing pilot for each burner, for instant ignition.
4. Removable full width drip pan.
